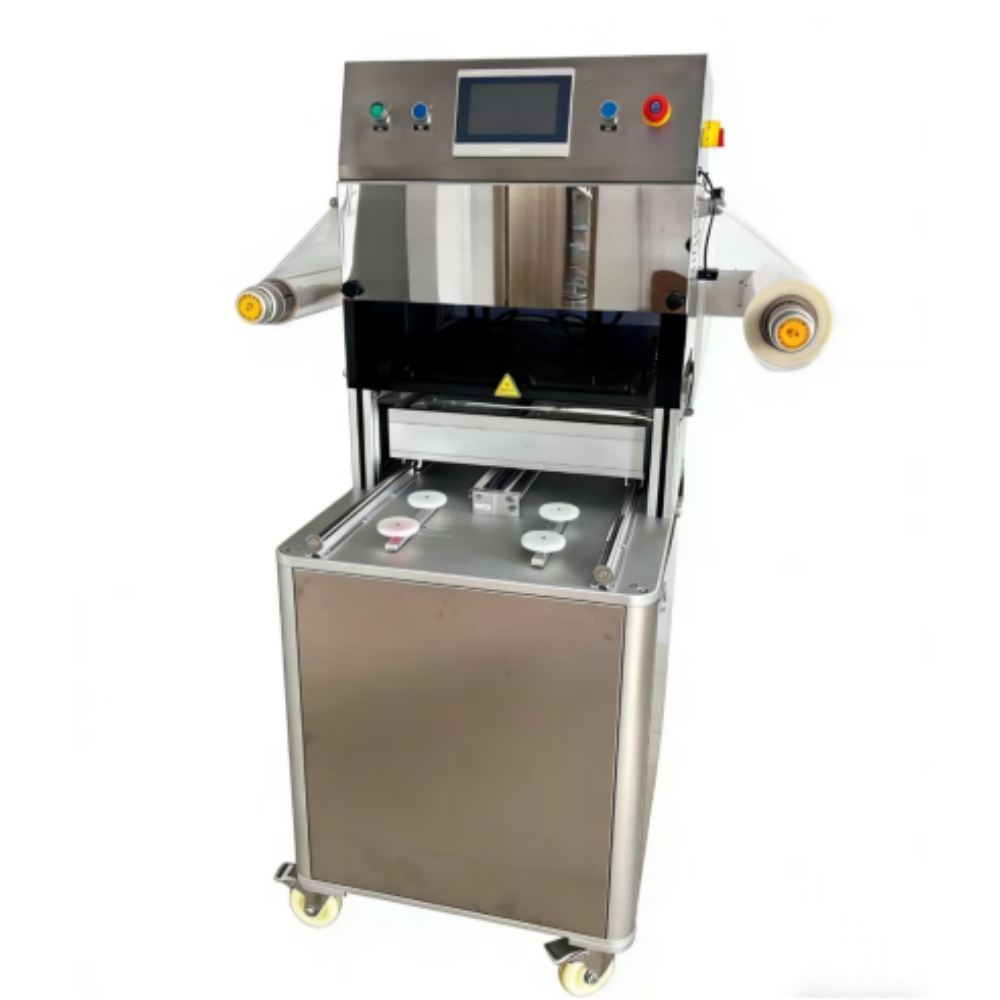

Vertical MAP Tray Sealing Machine

Detailed Description

Key Advantages:
1.Equipped with a computer touchscreen control panel and PLC centralized control system. High-quality AC contactors and independent temperature controllers ensure precise temperature regulation, allowing flexible parameter settings according to different packaging requirements.

2.The entire machine is constructed with full SUS304 stainless steel and rigid aluminum structure. Featuring a vertical design, all molds are made of anodized aluminum alloy, providing excellent corrosion resistance, easy cleaning, and compliance with food-grade hygiene standards.

3.Supports large-capacity packaging per cycle. Compatible with both printed film (eye mark film) and transparent film, meeting various fresh food and supermarket packaging applications.

Type	Vertical MAP Tray Sealing Machine
Model	DF-440Q
Maximum Width of Roll Film	410 mm
Maximum Diameter of Roll Film	220 mm
Gas Replacement Rate	99%
Gas Distribution Accuracy	±2%
Packaging Speed	5–6 times/min
Production Capacity (boxes/hour) Output 1	≈360
Production Capacity (boxes/hour) Output 2	≈640
Production Capacity (boxes/hour) Output 4	≈1000
Power Supply	220/50 V/Hz
Total Power	2.5 kW
Working Air Pressure	0.6–0.8 MPa
Equipment Weight	180 kg
Equipment Dimensions L×W×H	1080×980×1430 mm
Conversion of Packaging Gross Weight and Volume	389 kg
Packaging Box Dimensions L×W×H	1160×1200×1650 mm
Maximum Tray Size (mm) Output 1	—
Maximum Tray Size (mm) Output 2	310×220×80 (×2)
Maximum Tray Size (mm) Output 4	220×140×80 (×4)
Actual Gross Weight	248 kg
Outer Packing Dimensions	1050×1160×1650 mm

Configuration List

No.	Name and Application	Brand
1	Relay	Schneider
2	PLC Power Supply	Omron (Japan)
3	Pneumatic Cylinder	AirTAC
4	PLC	Self-developed
5	Touch Screen	Kinco
6	Circuit Breaker	Schneider
7	Push Button	Schneider (France)
8	Solenoid Valve	AirTAC
9	Pneumatic Component	AirTAC
10	AC Contactor	Schneider
